A wall-mounted basin mixer creates a cleaner, more architectural vanity setting, but its refined appearance depends on work that happens well before the trim is fitted. To install a wall basin mixer correctly, the in-wall body, finished wall depth, basin position, and spout reach must all be resolved together. A few millimeters can be the difference between a balanced result and a spout that splashes beyond the basin.
For a renovation or new build, wall-mounted tapware is best treated as an early design decision rather than a final fixture selection. It affects the plumbing rough-in, waterproofing sequence, wall finish, and vanity layout. When those details are coordinated, the result is a bathroom that feels composed, practical, and made for daily use.
Plan the Wall Basin Mixer Before Rough-In
A wall basin mixer is generally supplied in two parts: the concealed in-wall body and the visible trim set, including the handle, backplate, and spout. The in-wall body is installed during the rough-in stage, while the external components are fitted only after the wall is finished. Confirm that both parts belong to the same compatible mixer system before work begins.
Start with the basin. Its internal depth, width, overflow position, and mounting height determine where the water stream should land. The ideal stream usually falls around the center of the bowl or slightly toward the drain, rather than striking the rear wall of the basin or the front edge. A shallow vessel basin often needs more careful spout positioning than a deeper inset basin.
Spout reach matters as much as spout height. Measure from the finished wall face, not from the framing or plasterboard. If the projection is too short, the water can run too close to the back of the basin. If it is too long, the stream may hit the drain at an awkward angle or create unnecessary splash.
Before purchasing or installing, compare the technical dimensions of the mixer with the basin specification. This is especially valuable when coordinating a complete scheme across a collection, whether the look is crisp and contemporary or more sculptural and classic. Tuscani Tapware collections make it easier to maintain a consistent finish and design language across the basin mixer, shower fittings, and accessories.
Set the Correct Finished Wall Depth
The most critical part of a concealed mixer installation is setting the body at the correct depth. Manufacturers provide a minimum and maximum installation range, often marked directly on the in-wall body or shown in the product documentation. That range is measured from the face of the finished wall, not the wall studs.
Build up the entire wall assembly before fixing the mixer body permanently. Account for framing, sheeting, waterproofing membrane, tile adhesive, tile or stone thickness, and any feature panel. Natural stone, handmade tile, and thick porcelain can add more depth than expected. A mixer installed too far forward may prevent the trim plate from sitting flush; one set too far back can leave the handle spindle or outlet connection inaccessible.
Use a straightedge across the proposed finished wall line and mark the correct depth on the plumbing support. This simple step protects the proportions of the final installation. It also avoids the costly compromise of packing out trim or cutting into completed tile.
Choose a Solid Mounting Point
The in-wall body must be firmly secured to appropriate framing or a purpose-built noggin. It should not move when the handle is turned or when the spout is tightened. A level, square mounting surface helps the trim sit straight against the wall, particularly where geometric backplates and linear spouts make even a slight misalignment visible.
Confirm the hot and cold inlet orientation before connecting pipework. Most mixers follow the standard hot-left, cold-right convention, but product-specific instructions always take priority. Reversed supplies can affect mixer performance and may create an inconvenient daily-use experience.
Position the Spout and Handle With Purpose
Wall basin mixers can be installed with the handle beside the spout, above it, or in a separate arrangement depending on the design. There is no single correct layout, but the placement should feel intuitive and leave room for mirrors, shaving cabinets, wall lights, and tall splashbacks.
A centered spout works well above a single basin, while an offset handle can be a practical choice where a mirror cabinet opens over the vanity. For double basins, establish a clear visual rhythm first. Each spout should align with its own basin, and the handles should be positioned consistently so the vanity reads as one considered composition.
Avoid placing the handle so close to a side wall, mirror edge, or basin rim that it becomes difficult to operate. Also consider the user experience when hands are wet or soapy. A beautifully detailed mixer still needs enough clearance for comfortable control.
Rough-In, Pressure Test, and Protect the Finish
A licensed plumber should complete the concealed plumbing work in accordance with local code and the mixer manufacturer's instructions. Once the body and pipework are connected, pressure test the system before waterproofing and wall finishes are applied. Check every connection for leaks and allow sufficient time to confirm that pressure remains stable.
Do not skip this stage. A concealed leak can damage framing, waterproofing, cabinetry, and adjacent rooms long before it becomes visible. Access after tiling is limited, so correcting a problem at rough-in is significantly simpler than repairing one after the bathroom is complete.
Keep the supplied protective cap or cover in place while waterproofing, tiling, grouting, and painting are underway. It shields the internal components from dust, adhesive, grout, and accidental damage. Do not use the visible spout or handle as a rough-in tool, and do not fit decorative trim early just to check the look. Premium finishes can be scratched by tile tools, harsh cleaners, or abrasive grout residue.
Flush the Lines Before Final Fit-Off
After wall work is complete but before the aerator, cartridge trim, and final spout components are fitted, flush the water lines. Fine particles from new pipework, soldering, construction debris, or water supply sediment can affect flow and damage internal components. Flushing helps protect the mixer from its first use onward.

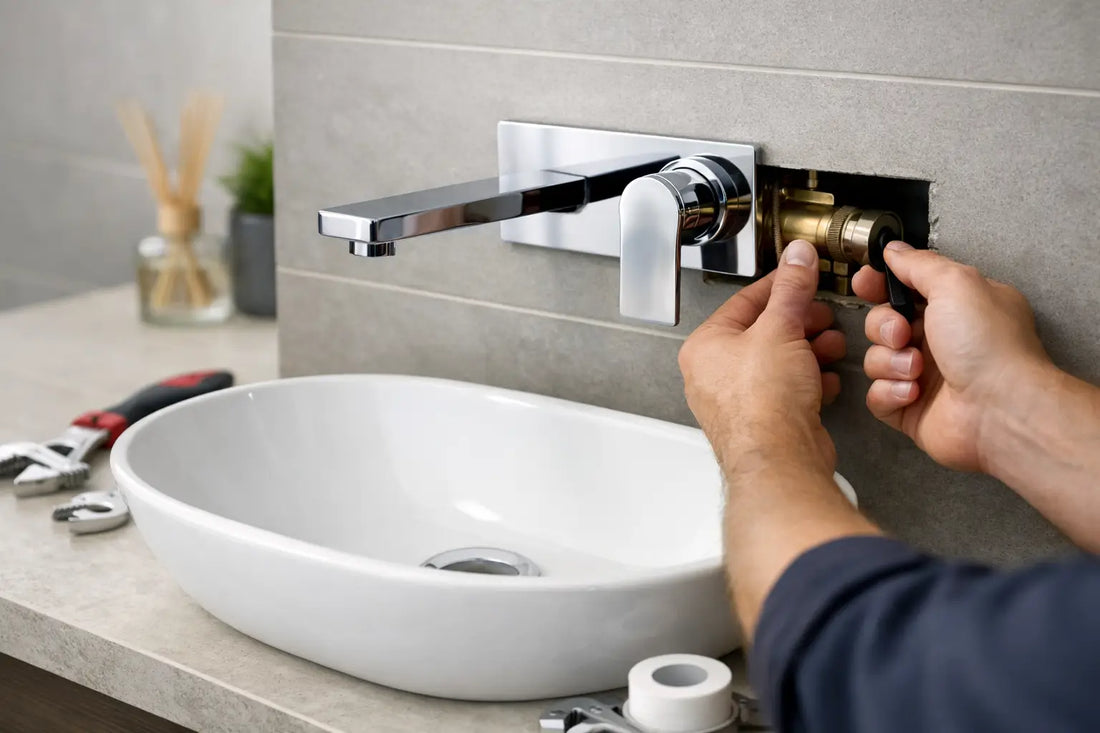

At final fit-off, remove the protective cover, install the trim according to the supplied sequence, and ensure the backplate sits cleanly against the finished wall. Use a soft cloth around finished surfaces and avoid overtightening. The goal is a secure, precise installation without marking the coating or stressing decorative parts.
Check Water Flow and Basin Performance
Turn the water on gradually and inspect the mixer at both low and full flow. Confirm that hot and cold operation feels correct, the handle moves smoothly, and the stream lands where planned. If the basin splashes, do not assume the mixer is faulty. The cause may be the combination of spout projection, basin geometry, water pressure, or aerator type.
A deeper basin with gently sloped sides is often more forgiving at higher flow rates. Shallow countertop basins can look striking but may require a lower-flow aerator or a more precise spout position. This is where product selection and installation cannot be separated: the most successful vanity schemes pair the right basin profile with the right wall mixer dimensions.
Check the wall plate and spout connection for any signs of seepage after the mixer has run. Then inspect again over the following days, particularly in a newly completed project where the system is being used for the first time.
Care for a Refined Finish
Once installed, a wall basin mixer needs only straightforward care. Wipe it with a soft damp cloth, then dry it to reduce water spotting. Avoid abrasive pads, harsh acids, bleach-based products, and strong bathroom chemicals, as these can dull or damage specialty finishes over time.
If mineral buildup develops around the aerator, follow the product care guidance and clean gently. Regular, light maintenance preserves the finish far better than occasional aggressive cleaning. It also keeps the basin area looking as polished as the day the project was completed.
A wall-mounted basin mixer rewards careful planning with an uncluttered vanity, easier bench cleaning, and a stronger sense of design continuity. Give the concealed components the same attention as the visible finish, and the result will feel effortless every time the water runs.
